Core Board
M76
64-bit High-Performance Core Board — 8K Video + 6 TOPS NPU

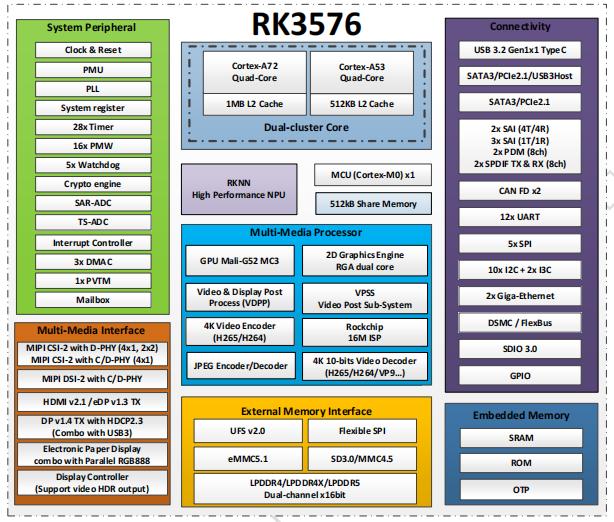

Rockchip RK3576 Quad-core A72/A53 + 6 TOPS NPU
64-bit High-Performance Core Board — 8K Video + 6 TOPS NPU
| CPU | Quad-core Cortex-A72 + Cortex-A53, up to 2.2 GHz |
| NPU | 6 TOPS @ INT8, supports transformer / LLM inference |
| GPU | Mali-G52 MC3, OpenGL ES 3.2 / Vulkan 1.1 |
| Memory | LPDDR4X / LPDDR5 up to 16 GB |
| ISP | 16 MP HDR, 3A / HDR / 3DNR / Debayer |
| Video | H.264/H.265/VP9/AV1/AVS2 8K@30fps + 4K@120fps |
| Display | HDMI 2.1 + eDP + MIPI DSI, triple-display |
| Interface | PCIe 3.0 / USB 3.0 / SATA 3.0 / GMAC |
| Operating | −20 ~ +70 °C |
