Products / B66
B66
Motherboard

B66

64-bit Commercial Motherboard with PoE — Plug & Play

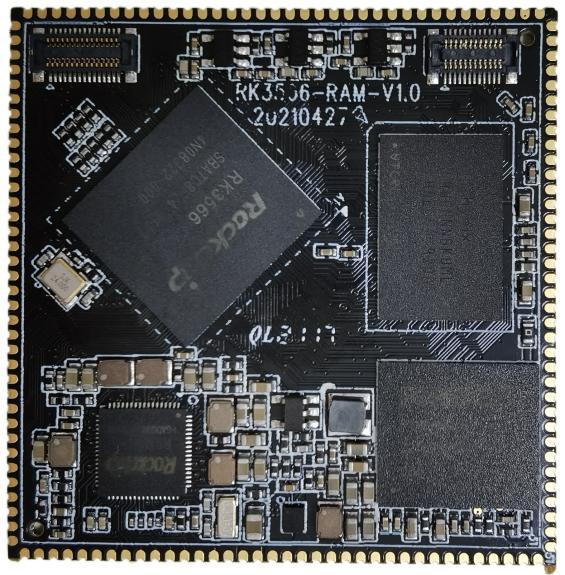

Rockchip RK3566 Quad-core Cortex-A55 @ 1.8 GHz
Inquire / Technical Consult ← Back to Products
Key Features

Why B66?

Specifications

Detailed Specifications

CPUQuad-core 64-bit ARM Cortex-A55 @ up to 1.8 GHz
NPU1 TOPS @ INT8
MemoryDDR4 / LPDDR4 up to 4 GB
StorageeMMC 5.1 + SD 3.0 + SATA 3.0
PoE802.3at PoE+ supported (25.5 W)
DisplayHDMI 2.0 + MIPI DSI, dual-display
NetworkGigabit Ethernet + Wi-Fi 6 + BT 5 (module)
USBUSB 3.0 ×2 + USB 2.0 ×2
FormMini-ITX-like, ready for enclosure integration
Applications

Scenarios

Smart kiosksWall-mounted displaysConference room panelsSelf-service terminals

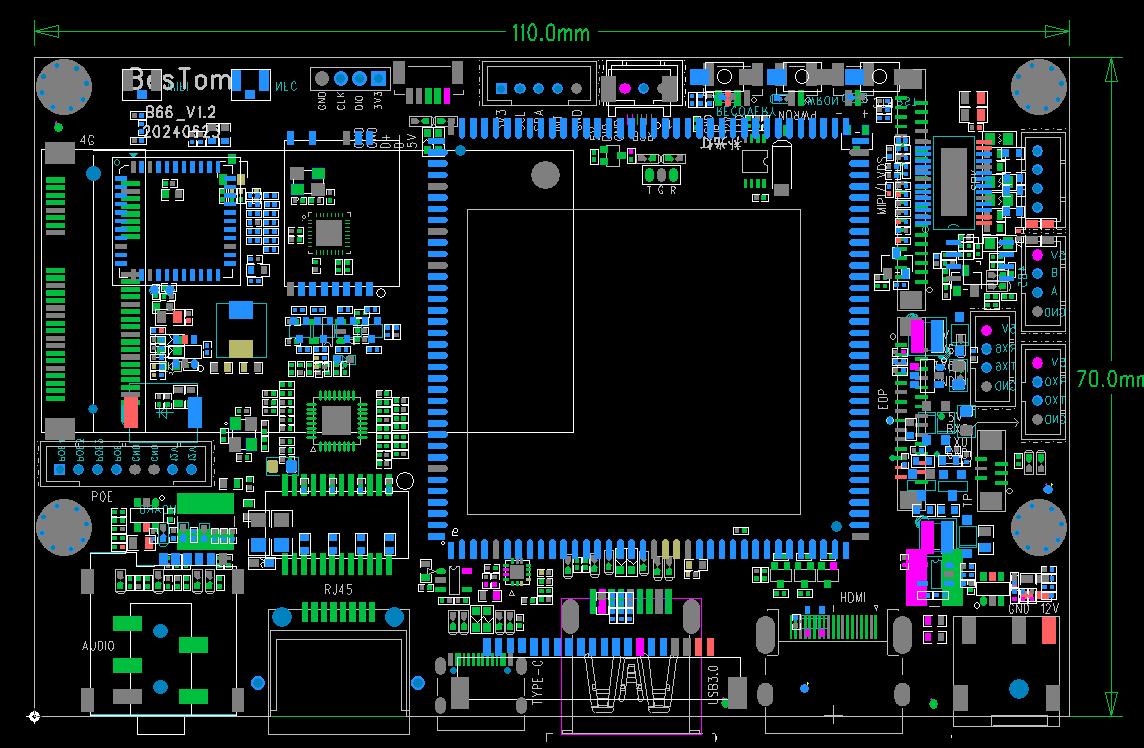

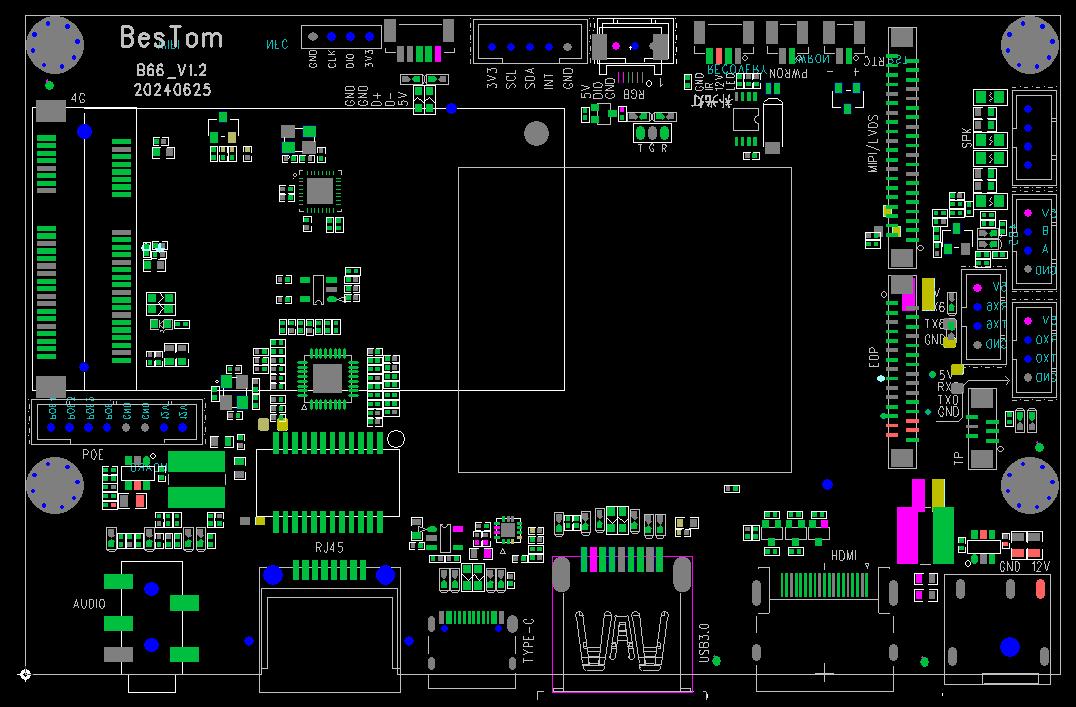

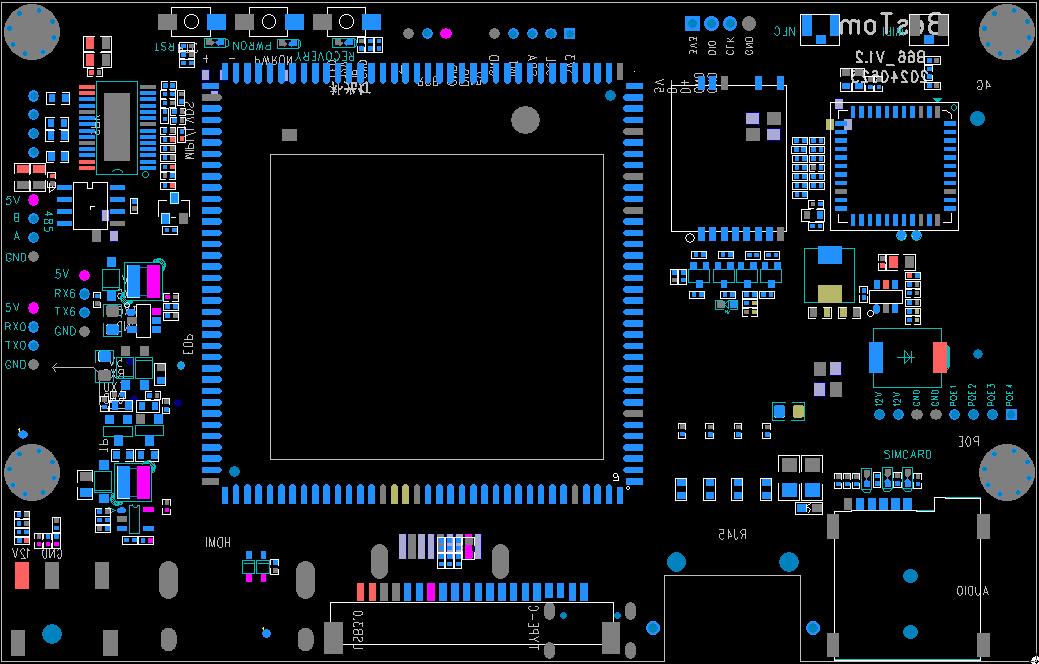

Gallery

Product Gallery
