AI Edge Gateway
AI3399Pro
Fanless metal AI edge gateway — RK3399Pro (3 TOPS NPU) with optional RK1808 daughter board (up to 6 TOPS total), 4×RS485 + 4×CAN + dual LAN + Wi-Fi 6, ready for industrial AI inference
Fanless metal AI edge gateway — RK3399Pro (3 TOPS NPU) with optional RK1808 daughter board (up to 6 TOPS total), 4×RS485 + 4×CAN + dual LAN + Wi-Fi 6, ready for industrial AI inference
| Main SoC | Rockchip RK3399Pro big.LITTLE hexa-core 64-bit: 2× Cortex-A72 + 4× Cortex-A53 @ up to 1.8 GHz |
| NPU | On-chip 3.0 TOPS, 8/16-bit inference, TensorFlow / Caffe models |
| AI Expansion | Optional RK1808 daughter board (3 TOPS NPU) — combined up to 6 TOPS for multi-model parallel inference |
| GPU | Mali-T860 MP4, OpenGL ES 1.1/3.0/3.1, OpenCL, DirectX 11.1, AFBC |
| Video Codec | 4K VP9 / 10-bit H.265/H.264 decode @60fps, 1080P multi-format decode, 1080P H.264/VP8 encode |
| Memory | 5 GB (LPDDR3) |
| Storage | 32 GB eMMC, optional SATA/NVMe SSD |
| Ethernet | 2 × 10/100 Mbps RJ45 |
| Wireless | Wi-Fi 6 + Bluetooth; optional 4G LTE via PCIe slot; 1 × SIM card slot |
| USB | 2 × USB 2.0 Host + 1 × USB OTG (Type-C) |
| Serial / IO | 4 × RS485 + 4 × CAN |
| Display | 1 × HDMI + 1 × MIPI-DSI LCD interface |
| Audio | 1 × 3.5 mm headphone jack |
| Other | RTC + 2 × LED indicators + 1 × network expansion header |
| Power | DC 12 V input |
| OS | Android / Linux (Debian, Buildroot) |

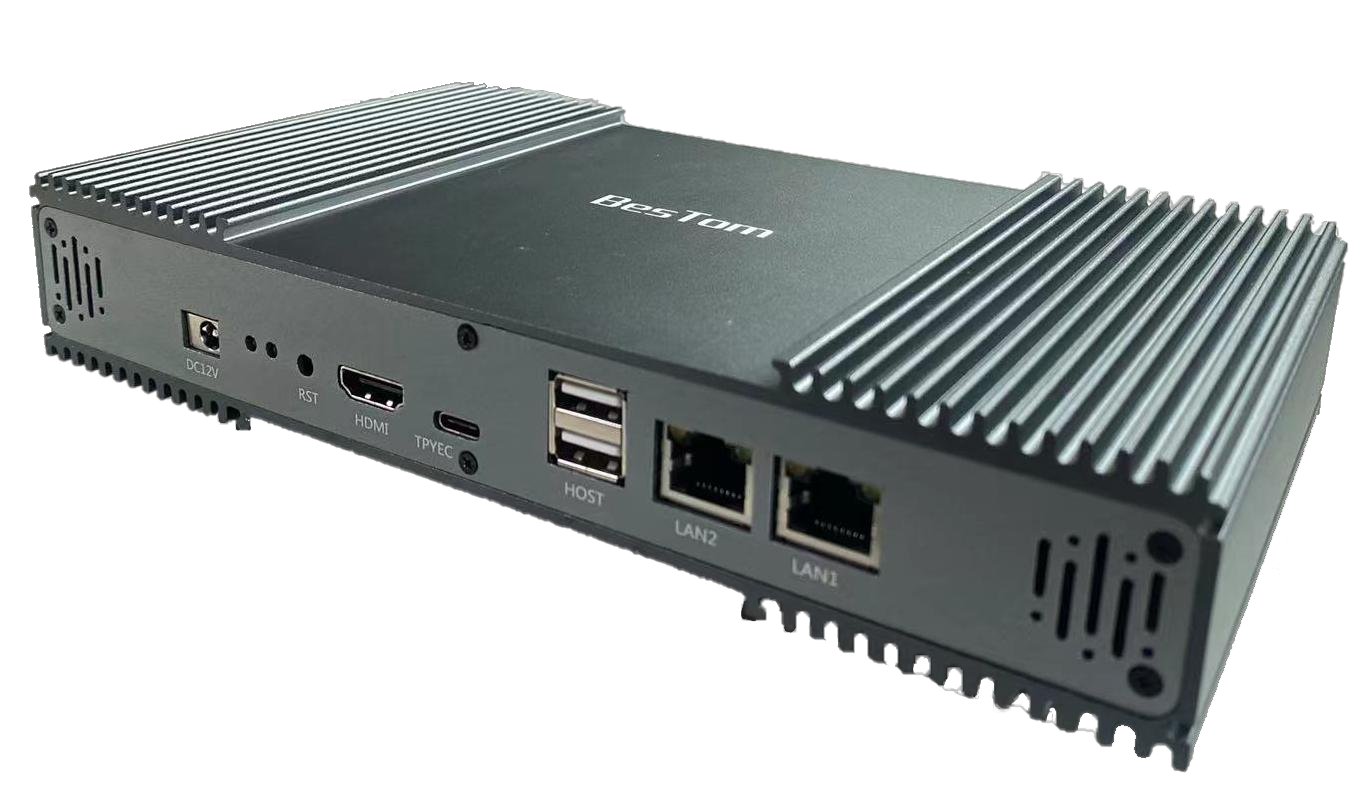

| Enclosure | Industrial-grade metal chassis, fanless passive cooling, 230 × 128 × 40 mm |
