X63
Rugged Smartphone · Qualcomm QCM4490 (5G) / SM6115 (4G)

X63

6.3-inch rugged smartphone with Qualcomm 5G/4G, IP67, 1.5m drop, dedicated scanner keys, 6000mAh removable battery. Optional 1D/2D scanner, RTK, NFC, RFID. The most compact PDA for warehouse, logistics, and retail.

Inquire → ← Back to Products

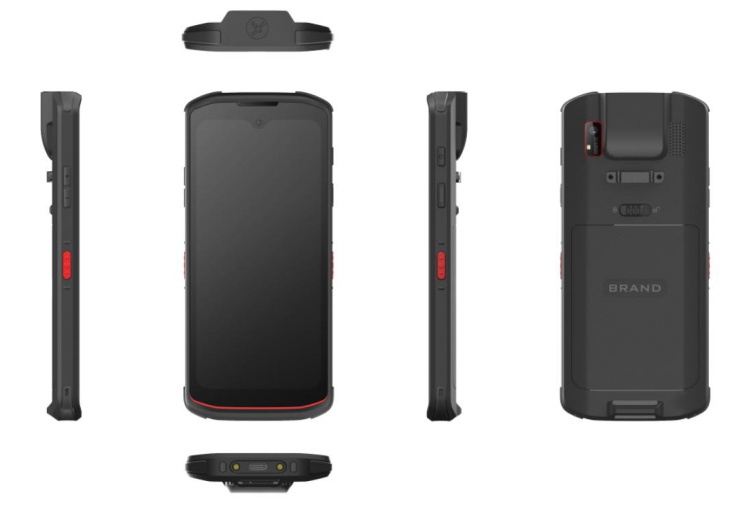

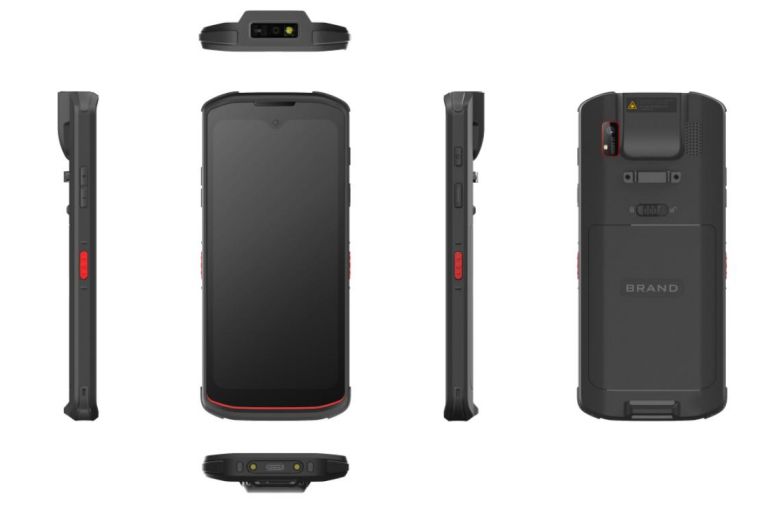

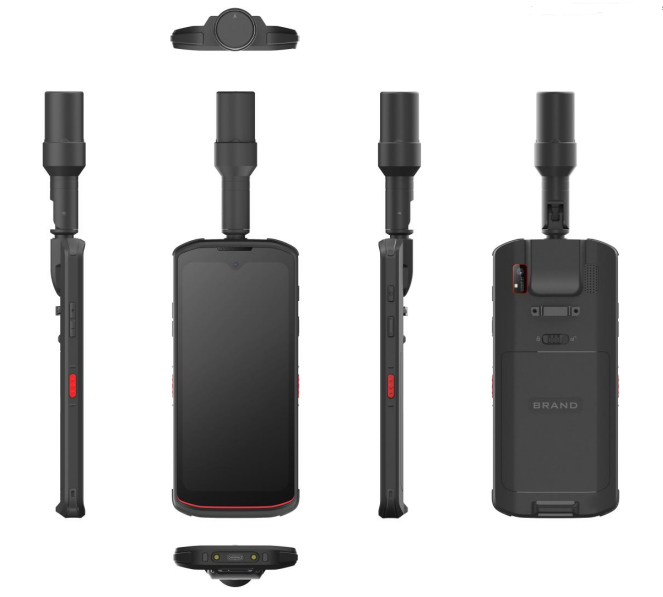

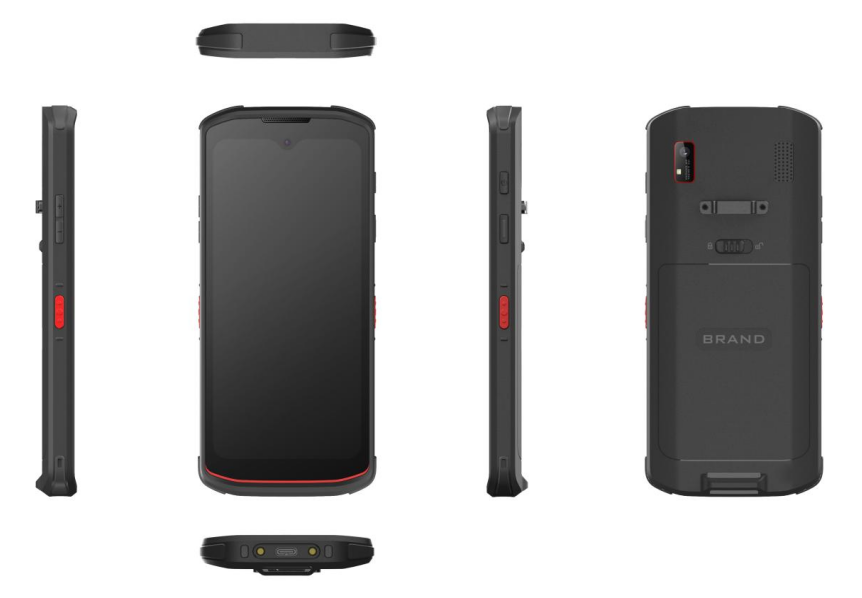

Gallery

Product Gallery

X63
X63
X63
X63
X63
X63
X63
X63
Specifications

Full Specifications

Model
X63
Type
Rugged Smartphone
SoC
Qualcomm QCM4490 (5G) / SM6115 (4G)
CPU
Octa-core 2.4GHz (5G) / 2.0GHz (4G)
NPU
—
GPU
Adreno
RAM
4GB LPDDR4 (opt: 6/8GB)
Storage
64GB UFS 3.1 (opt: 128/256GB)
OS
Android 15 (5G) / Android 12 (4G)
Display
6.3" 1080×2340 FHD+ IPS LTPS
Brightness
—
Touch
5-point capacitive, Gorilla Glass 3
Wi-Fi
Wi-Fi 6E (5G) / Wi-Fi 5 (4G), dual-band
Bluetooth
BT 5.2 (5G) / BT 5.0 (4G)
NFC
Optional (13.56MHz, ISO14443A/B/15693)
Ethernet
—
Serial
UART port (optional)
USB
Type-C USB 3.0
HDMI
—
Audio
1.5W speaker, mic ×2
Power
5V/2A adapter, Quick Charge 3.0, Pogo Pin
Max Power
—
Standby
—
Operate Temp
-20°C ~ 60°C
Storage Temp
-30°C ~ 70°C
Material
Rugged housing, IP67
Dimensions (mm)
173 × 80 × 16 mm
Weight
300g
Key Features

Product Highlights

IP67 rated

1.5m drop resistance

±15kV ESD protection

5G NR Sub-6 + 4G LTE

6000mAh removable battery

Dedicated scanner keys ×2

1D/2D scanner (optional)

RTK centimeter positioning (optional)

Fingerprint (optional)

RFID (optional)

Applications

Typical Applications

Warehouse picking

Last-mile delivery

Retail inventory

Asset tracking

Field workforce

Inquire / Get Datasheet →
FAQ

Frequently asked questions

What is the X63 used for?

Warehouse picking; Last-mile delivery; Retail inventory; Asset tracking; Field workforce

What processor does the X63 use?

Qualcomm QCM4490 (5G) / SM6115 (4G)

What CPU does the X63 use?

Octa-core 2.4GHz (5G) / 2.0GHz (4G)

What storage does the X63 support?

64GB UFS 3.1 (opt: 128/256GB)

What display does the X63 have?

6.3" 1080×2340 FHD+ IPS LTPS

What operating system does the X63 run?

Android 15 (5G) / Android 12 (4G)

What are the power requirements of the X63?

5V/2A adapter, Quick Charge 3.0, Pogo Pin

How much does the X63 cost?

Pricing is quoted per configuration and volume — there is no single list price. Send us the target quantity, configuration and destination and we will come back with a firm quote and lead time.

Can the X63 be customized or branded?

Yes. METO provides ODM and OEM customization on its platforms, including hardware configuration, enclosure, branding and packaging. See the ODM/OEM page for scope, or send us your requirements.

What is the minimum order quantity for the X63?

MOQ depends on whether you need a standard configuration or a customized build. It is confirmed together with the quotation — tell us your target volume and we will state the MOQ for that configuration.
